There is no universal patio thickness that is correct for every yard. A simple walking and seating surface has a different job from a slab supporting masonry, a built-in outdoor kitchen or a filled hot tub. Soil can be firm and uniform on one property, then soft, expansive or recently disturbed next door. The safe approach is to define the use and site conditions first, then use the concrete volume calculator to test the selected dimensions and let local code and a qualified professional determine the assembly.
A practical planning baseline—and when it stops applying
Homeowners commonly encounter a nominal 4-inch concrete slab as an early planning assumption for an ordinary ground-supported patio used by people, tables and movable grills. Treat that figure as a budgeting baseline, not a specification. The slab may need a different thickness, thickened zones or a separate footing design when it carries concentrated or structural loads. Convert the final assembly into an order quantity with the cubic yard calculator.
- Lower-complexity patio: pedestrian use and lightweight movable furniture over firm, well-drained, uniform support.
- Typical residential patio: seating, dining and a movable grill, with excavated and compacted support, a defined joint layout, drainage slope and a curing plan.
- Higher-demand patio: a hot tub, masonry fireplace, permanent outdoor kitchen, roof posts, vehicle access, retaining conditions, steep grade, expansive soil or disturbed fill.
Do not simply make the entire slab thicker to solve every higher-demand condition. A heavy appliance or post may require a locally thickened foundation or engineered footing. A hot tub’s operating weight includes the shell, water and occupants, and its manufacturer may state support requirements. Coordinate those requirements before excavation and placement.

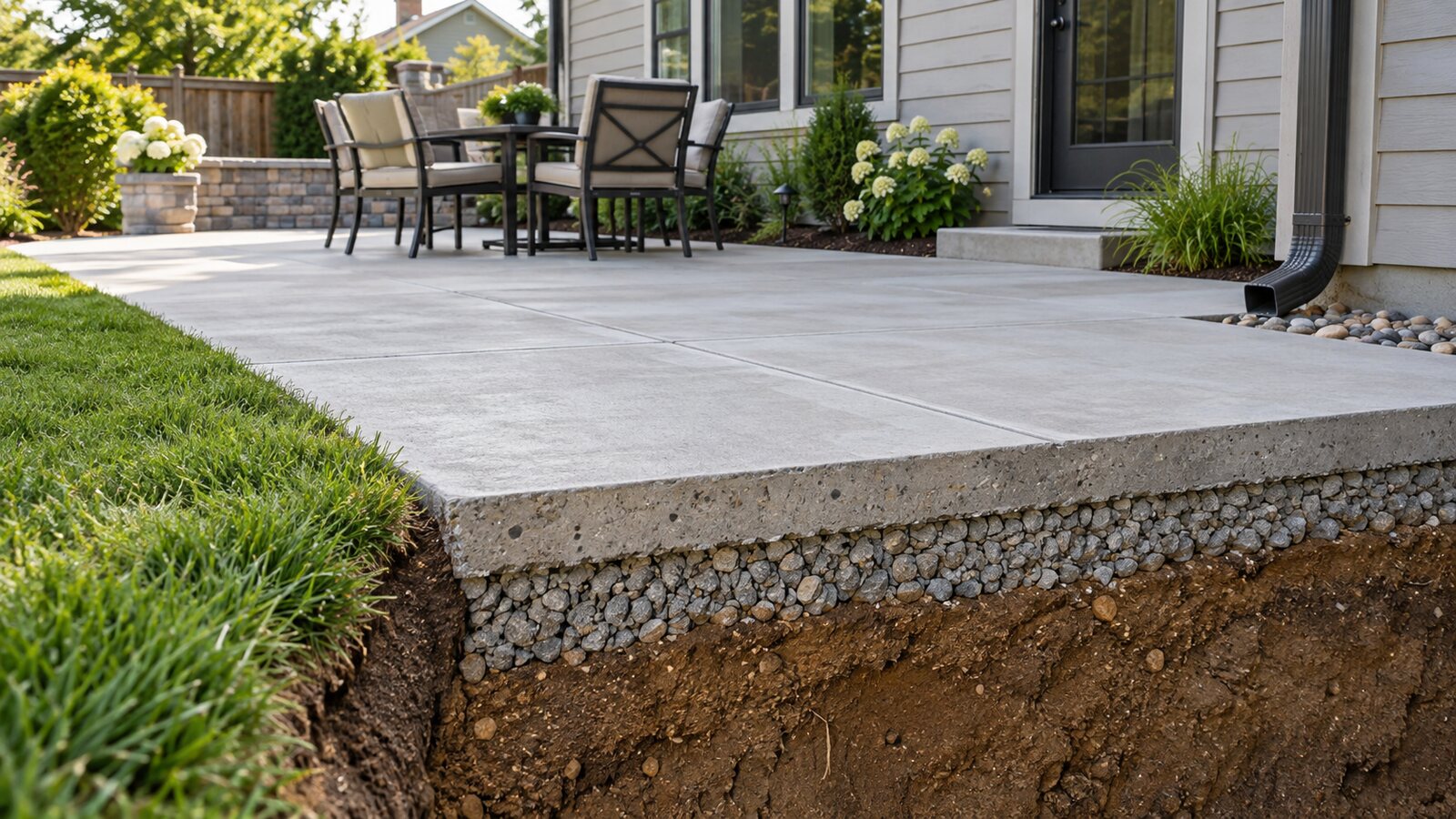

Support below the slab is as important as concrete above it
Concrete distributes load, but the subgrade and base carry it. Remove vegetation, topsoil, organic matter and loose material from the slab area. Soft spots and utility trenches need a specific correction plan; hiding them beneath extra aggregate does not guarantee uniform support. Base material, depth and compaction should respond to the soil, drainage, climate and local practice.
The USDA Natural Resources Conservation Service explains that soils can differ in seasonal wetness, shrink-swell behavior, depth to bedrock and other properties. Its official Web Soil Survey can help screen a property’s mapped soil, but it cannot confirm the condition of fill or excavation at the patio. When the site is questionable, field evaluation is more useful than relying on a map alone.
Drainage and elevation should be decided before thickness
A patio beside a house should direct water away from the building while staying below vulnerable door thresholds, siding and weep details. Establish the finished elevation, slope and outlet before calculating excavation depth. Check downspouts, window wells, foundation vents and neighboring grades. If water has nowhere safe to go, a drain, swale or other site solution may be needed.
A concrete patio is an impervious surface, so it changes runoff. The U.S. Environmental Protection Agency’s green infrastructure overview explains how impervious cover affects stormwater and how practices such as infiltration and capture can manage it. Whether a specific practice is allowed depends on local soils, setbacks and stormwater rules. Never direct runoff across a property line or toward the foundation without local approval.
Joints, reinforcement and curing have different jobs
Concrete shrinks as it dries and moves with temperature. Control joints create planned weak planes so cracks are more likely to form at intended locations. Isolation joints separate the patio from walls, columns or other restraints where appropriate. Joint spacing, geometry, depth and timing should be documented before the pour, especially around inside corners where cracking risk increases.
Rebar, welded wire reinforcement or fibers may be specified to manage crack behavior, but reinforcement does not replace appropriate thickness, uniform support or correctly timed joints. Ask where the reinforcement will sit in the slab and how workers will keep it there during placement. Material lying on the ground cannot perform as though it were properly supported within the concrete.
Curing is the controlled retention of moisture and temperature after finishing. It helps the concrete develop intended properties and reduces rapid surface drying. The National Ready Mixed Concrete Association’s Concrete in Practice series provides technical summaries on cracking, joints, finishing, curing and hot- or cold-weather placement. The contractor’s proposal should state the curing method and weather contingency.
Worked example: 12-by-16-foot patio
For a rectangular patio 12 feet by 16 feet, area is 192 square feet. At a nominal 4-inch slab thickness:
192 sq. ft. × (4 ÷ 12 ft.) = 64 cu. ft.; 64 ÷ 27 = 2.37 cu. yd.
At 5 inches, the same patio uses:
192 × (5 ÷ 12) ÷ 27 = 2.96 cu. yd.
The 5-inch theoretical quantity is 25% greater because the thickness is 25% greater. Neither result includes thickened areas, uneven excavation, spillage or an ordering allowance. Separate steps, footings and irregular sections rather than blending them into one average. Use the Concrete Calculator once the design dimensions are established, and review the measurement process in How Much Concrete Do I Need for a Patio?.
What a complete patio proposal should include
A useful scope identifies demolition and disposal; excavation limits; subgrade correction; base type and compacted depth; concrete slab and thickened-section dimensions; concrete mix requirements; reinforcement; joint plan; surface finish; drainage slope; curing; access protection; cleanup; and responsibility for permits and inspections.
Common exclusions include unsuitable-soil removal, dewatering, buried utility relocation, retaining walls, steps, footings, roof structures, electrical or gas work, drains, landscaping repair, decorative color, sealing and testing. If a quote depends on unknown subsurface conditions, request unit prices or a written change-order method. Compare those assumptions with the site’s HomeCostEngine cost methodology instead of comparing only bottom-line prices.
Regional and permit checks
Freeze-thaw exposure, deicing salts, high heat, coastal exposure and expansive soils affect materials and construction procedures. Local frost depth may also matter when the patio supports a roof, posts, walls or attached structural elements. A floating slab and a structural footing are not interchangeable merely because both use concrete.
Permit rules vary. A simple unroofed patio may be treated differently from one attached to the house or supporting plumbing, gas, electrical work, a spa, walls or a roof. Lot coverage, setbacks, easements, stormwater rules and homeowners’ association requirements may also apply. Contact the local building and planning departments before committing to dimensions; call the utility-location service before excavation.
Questions to ask the contractor
- What slab thickness, edge detail and any thickened zones are included?
- How will soft soil, fill and utility trenches be identified and corrected?
- What base material and compacted depth are specified?
- Where will water flow, and how is the patio kept safely below the building envelope?
- What reinforcement, control joints and isolation joints are included?
- What curing method and hot-, cold- or windy-weather plan will be used?
- Which permits, inspections and utility-location responsibilities belong to each party?
Frequently asked questions
Is four inches always enough for a concrete patio?
No. Four inches is a common early assumption for a basic pedestrian patio, but soil, climate, concentrated loads, structural elements and local rules can require another design.
Does a patio for a hot tub need to be thicker?
It may. A filled spa creates a substantial concentrated load. Obtain the manufacturer’s support criteria and have the slab or foundation designed for the specific model and site.
Can reinforcement prevent all cracks?
No. Reinforcement may help control crack width or maintain alignment, but concrete can still crack. Support, joint design, curing and drainage remain essential.
Should the aggregate base be counted as patio thickness?
No. State the concrete slab thickness and compacted base depth separately. Combining them into one number makes quotes difficult to verify.
How soon can furniture go on a new patio?
Follow the concrete supplier’s and contractor’s project-specific instructions. Weather, mix and load matter, and a surface that looks dry is not necessarily ready for concentrated loads.
Detailed planning notes for Concrete Patio Thickness
The sections below expand this guide so you can move from a quick answer to a more complete homeowner planning process. They focus on measurements, scope, quote comparison and the questions that reduce expensive surprises.
Concrete planning: quantity is only the first step
Concrete math looks simple because volume is length × width × thickness, but field conditions make the practical order more complicated. Forms are rarely perfect, the subgrade may vary slightly, some material can be lost during placement, and ready-mix suppliers often have minimums or ordering increments. A small waste allowance is therefore common, but it should be reasonable for the shape and conditions of the project rather than added blindly.
Thickness is a design decision, not just a cost input. A patio, walkway, driveway and structural slab do not carry the same loads or require the same base preparation. Soil, drainage, freeze-thaw exposure, reinforcement, joints and local code can all affect the final design. The cost of the concrete itself is also only part of the installed project. Excavation, base material, forming, reinforcement, pumping, short-load charges, finishing, curing, access and demolition can materially change the total.
Before ordering, convert your measurements with the Concrete Calculator or Cubic Yard Calculator. For larger pours, confirm the quantity, mix and delivery plan with the supplier or contractor. Technical information from the American Concrete Institute and the National Ready Mixed Concrete Association can help homeowners understand why mix design, placement and curing matter.
Measure twice before you order material
Quantity errors usually come from the inputs, not the formula. Recheck length, width, depth, pitch or surface area and make sure every measurement uses the same unit. For irregular projects, break the area into simple rectangles, triangles or other manageable shapes, calculate them separately, then add the results. This is usually more reliable than forcing a complicated space into one rough measurement.
After calculating the theoretical quantity, think about waste and purchase increments. Cuts, breakage, compaction, spillage, pattern matching and packaging can create a gap between calculated quantity and what you actually need to buy. The correct allowance depends on the material and project. Avoid adding a large arbitrary percentage “just in case”; instead, use supplier packaging, installation guidance and the shape of the project to choose a sensible buffer.
Finally, confirm the order with the supplier or installer when mistakes would be expensive. Ask how the product is sold, whether quantities are rounded, whether there is a minimum order and how returns are handled. Save your measurements and calculation so you can explain the order later and compare it with the contractor's takeoff.
A practical way to use this HomeCostEngine guide
Use this article in three passes. First, understand the cost or quantity drivers so you know what information matters. Second, run the related calculator with your own measurements instead of relying on a national average. Third, compare the result with local supplier prices or written contractor proposals. That sequence turns a general online guide into a project-specific planning tool.
Keep a simple project file with measurements, screenshots, product names, quotes and notes from contractor conversations. When a number changes, update the assumption instead of starting from scratch. This is especially useful when bids arrive weeks apart or when one proposal contains a different material, warranty or scope. A documented baseline helps you notice meaningful differences rather than being distracted by the final total alone.
Remember that HomeCostEngine estimates are for budgeting and education. They do not include every local code requirement, permit rule, hidden condition or labor-market difference, and they are not a substitute for a site inspection. For structural, electrical, plumbing, HVAC, roofing or other work where safety and code compliance matter, verify the final plan with qualified local professionals. If a contractor discovers hidden damage after work begins, ask for photos, an explanation and a written change order before approving additional work whenever practical.
Common mistakes that make online estimates less accurate
- Using living area instead of project area. Roof surface, paintable wall area, flooring area and landscape beds can all differ from the home's advertised square footage.
- Comparing incomplete scopes. Demolition, disposal, preparation, permits, delivery and accessories may be included in one quote and excluded from another.
- Ignoring purchase increments. Bags, cartons, bundles, truckloads and supplier minimums can force the real order above the theoretical calculation.
- Assuming one national price fits every location. Labor rates, access, codes, climate and material availability vary across U.S. markets.
- Choosing only on price. Product specification, workmanship, warranty, schedule and clarity of scope can be as important as the lowest total.
Before you approve the project
Recheck the final measurements and confirm who is responsible for permits, site protection, disposal and cleanup. Make sure important materials are identified by product or performance specification rather than a vague category. Review deposit and progress-payment terms, start and completion expectations, warranty language and the process for unexpected conditions. Keep copies of signed documents and receipts.
If the project is still in the research stage, use the related HomeCostEngine calculators and articles linked throughout this page to test more than one scenario. Changing the project size, material or labor assumption can show which inputs have the biggest effect on the budget. That is usually more useful than chasing one “perfect” average price from the internet.
